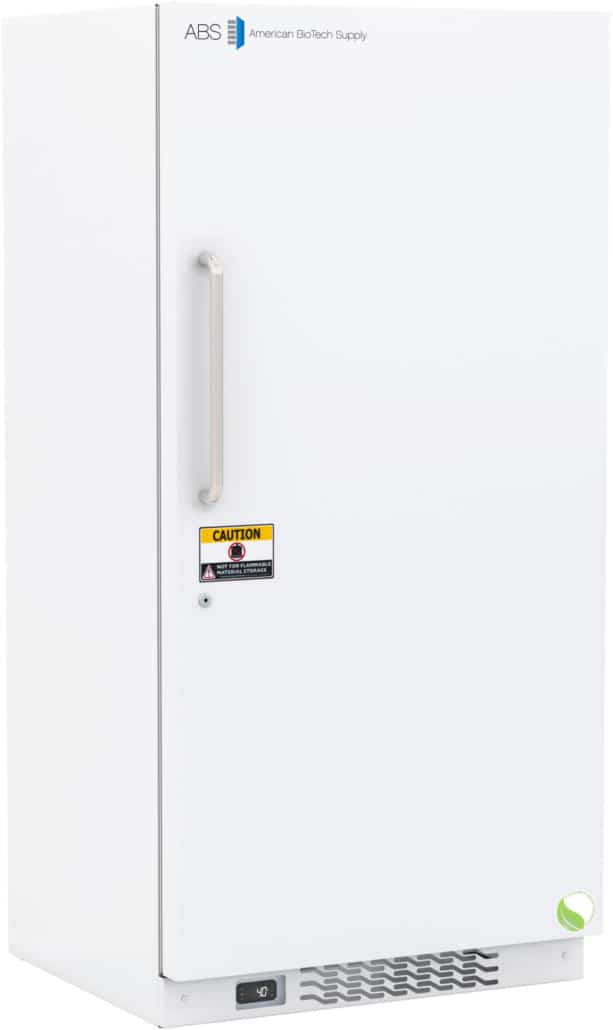

ABS ABT-HC-30R Laboratory Refrigerator General Purpose

Description

ABS ABT-HC-30R Laboratory Refrigerator General Purpose

Designed for reliable and eco-conscious laboratory storage, this 30 cu. ft. ABS ABT-HC-30R Laboratory Refrigerator General Purpose offers versatile performance for lab environments. Its temperature control is powered by microprocessor technology and protected by audible and visual alarms. It maintains tight temperature uniformity with an adjustable operating range of 2°C to 10°C. Utilizing hydrocarbon refrigerants, this unit meets EPA SNAP compliance, protecting environmental safety. It features a durable white powder-coated steel exterior, with a keyed door lock for added security. This unit offers 30 cubic feet of spacious storage and five adjustable shelves for versatile organization. With a low energy consumption and environmental benefits, the ABT-HC-30R is an efficient and dependable solution for general laboratory applications.

Refrigerator Description:

• Storage capacity (cu. ft)– 30 Cu. Ft.
• Door– One solid swing, right hinged; stainless steel door handle; magnetic door gasket
• Shelves– Five adjustable
• Drawers– Non-applicable
• Mounting and Installation– Leveling Legs
• Interior lighting– Non-applicable
• Airflow Management– Forced draft circulation
• External probe access– 3/4″ probe access port on rear wall
• Insulation– EPA compliant high density urethane foam
• Exterior materials– Powder coated steel
• Access control– Keyed Door Lock
• General warranty– Two (2) year parts and labor warranty
• Compressor warranty– Five (5) year compressor parts warranty
• Product Weight (lbs)– 330
• Shipping Weight (lbs)– 360
• Rated Amperage– 3.1 Amps
• Power Plug/Power Cord– NEMA 5-15P plug, 6 ft long cord
• Facility Electrical Requirement– 110 – 120V AC, 15A breaker, NEMA 5-15 receptacle
• Agency Listing and Certification– UL listed per UL 60335-1 and UL 60335-2-89 standards; c UL listed per CSA C22.2 No. 120 standard

Refrigerator Performance:

• Uniformity (Cabinet air)– +/- 1.6°C
• Stability (Cabinet air)– +/- 1.0°C
• Maximum temperature variation– 3.6 °C Total (Cabinet air)
• Energy Consumption (KWh/day)– < 1.5 KWh/day
• Average Heat Rejection (BTU/hr)– 500 BTU/hr
• Pull down time to nominal operating temp– <35 min (empty)
• Width (in.)– 35.75″
• Depth (in.)– 35.5″
• Height (in.)– 72.5″
• Refrigerant– EPA SNAP compliant R600a Isobutane

Refrigerator Temp Controller:

• Controller technology– Microprocessor temperature controller with variable frequency compressor control
• Battery Backup– Optional accessory
• Display technology– Digital Temperature Display, Sample simulated digital temperature display; .1° Resolution
• Alarms– Product simulator bottle with glass bead media
• Display Probe– Audible and visual high/low-temperature alarms, Door ajar alarm, Remote alarm contacts
• Temperature Setpoint Range Notes– Minimum temperature limited to avoid freezing
• Adjustable Temperature Range– 2°C to 10°C
• External alarm connection– Remote alarm contacts

Disclaimers– Refrigerator requires a minimum 4” of clearance around back and sides of the unit for proper ventilation (more if next to heat rejecting equipment) – improper installation will void the warranty and will lead to temperature maintenance issues, overheating and possible failure

American Biotech Supply Refrigeration Solutions to Meet Tomorrow’s Standards. ABS Offers you creative product designs and an open mind for customer specific applications. View our wide selection of Premier Laboratory Refrigerators and Freezers.

We have a vast selection of laboratory refrigeration and freezer models to choose from, ranging down to Ultra-Low -86°C cascade freezers and -196°C cryogenic freezers.
