Description

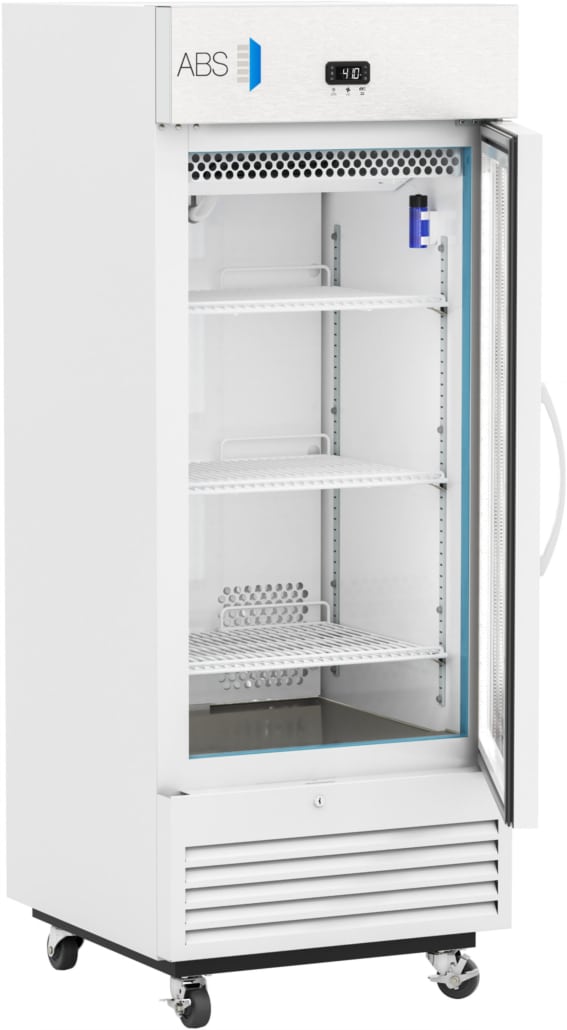

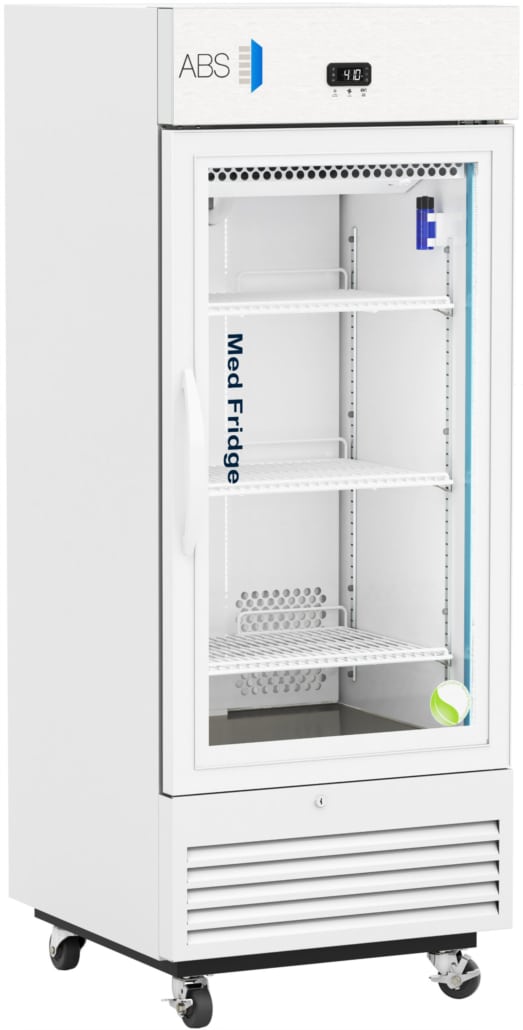

ABS PH-ABT-VS-S12G Pharmacy Refrigerator Standard Glass Door
The ABS PH-ABT-VS-S12G Pharmacy Refrigerator Standard Glass Door are designed for reliable and cost-effective cold storage. This model features ultra-low energy consumption and energy efficient natural refrigerants. Using microprocessor temperature technology, this unit delivers precise temperature monitoring and control. It offers essential security features, including a keyed door lock and temperature alarms, along with remote alarm contacts. Enjoy durable powder-coated steel construction, glass door transparency, and adjustable inner shelving to optimize your workflow. All features are designed to heighten performance and efficiency in your clinical setting.
Pharmacy Refrigerator Details:
- Storage capacity– 12 Cu. Ft.
- Door– One (1) swing glass door, self-closing, right hinged, not reversible, magnetic door gasket
- Shelves– Three (3) adjustable shelves (adjustable in ½” increments)
- Drawers– Non-applicable
- Mounting and Installation– Swivel casters – locking front casters
- Interior lighting– LED interior lights are safety shielded and switch controlled
- Airflow Management– Forced draft air circulation – Patented air flow technology
- External probe access– Probe access port (3/4″) on rear wall
- Insulation– Cabinet is foamed-in-place with EPA compliant high density urethane foam\
- Exterior materials– White powder coated steel
- Access control– Keyed door lock; compatible with optional digital lock (including Pyxis, Omnicell, and AcuDose RX)
- General warranty– Two (2) year parts and labor warranty
- Compressor warranty– Five (5) year compressor warranty
- Product Weight (lbs)– 221
- Shipping Weight (lbs)– 254
- Exterior Width (in)– 25″
- Exterior Depth (in)– 29″
- Exterior Height (in)– 66″
- Rated Amperage– 2 Amps
- Power Plug/Power Cord– NEMA 5-15 plug, vaccine storage power cord warning label
- Facility Electrical Requirement– 110 – 120V AC, 15A breaker, NEMA 5-15 receptacle
- Agency Listing and Certification– ETL, C-ETL listed. Meets or exceeds Energy Star v2.0 for Laboratory Refrigerators. Official listing pending – see energystar.gov
Pharmacy Refrigerator System:
- Compressor– Hermetic
- Refrigerant– EPA SNAP compliant R600a Isobutane (Hydrocarbon natural refrigerant)
- Condenser– Tube and rid, high efficiency fan forced air
- Evaporator– Fin and tube, high efficiency fan forced air
- Defrost Cycle– defrost
Pharmacy Refrigerator Temp Controller:
- Controller technology– Microprocessor temperature controller, C°/F° switchable, resolution is 0.1° C/0.2° F
- Noise pressure level (dBA)– 40 dBA or less installed
- Display technology– Digital Temperature Display
- Stability – simulator ballast (°C)– +/- 0.5° C
- Average heat rejection (BTU/h)– <250 BTU/h
- Max temp variation – cabinet air (°C)– +/- 2.5° C
- Adjustable Temperature Range– 36° F to 46° F (2° C to 8° C), Calibrated using a NIST traceable device, certificate included
- External alarm connection– Remote alarm contacts
- Included accessories– Pharmacy refrigerator/freezer toolkit
- Battery Backup– For controller temperature display and alarms only, no cooling active
- Energy consumption (KWh/day)– <0.9 KWh/day *meets Energy Star v2.0 for Laboratory Refrigerators
- Display probe– Product simulator bottle with glass bead media
- Pull down time to nominal operating temp– < 30 min (empty)
- Alarms– Audible and visual high/low temperature alarms, remote alarm contacts
Disclaimer(s)– Refrigerator requires a minimum 2” of clearance at back and sides of the unit for proper ventilation
Performance Note– Max temperature variation based on an empty chamber at steady state using 15 bare (unweighted) thermocouple probes. Product loading, door openings, and ambient conditions will affect performance. Stability of simulator ballast based on bottle probe provided with the unit located center of empty chamber at steady state, no door openings
We have a vast selection of laboratory refrigeration and freezer models to choose from, ranging down to Ultra-Low -86°C cascade freezers and -196°C cryogenic freezers.
Product FAQ
What is the temperature range of the PH-ABT-HC-S12G?
The unit is designed for clinical and pharmacy storage, maintaining temperatures between 2°C and 8°C to ensure vaccine and pharmaceutical integrity.
Does it feature a glass door?
Yes, the model is equipped with a glass door, which provides clear visibility for inventory management without the need to open the unit and risk temperature shifts.
What are the exterior dimensions and interior capacity?
The unit offers 12 cubic feet of storage capacity. The exterior dimensions are 23 3/4” W x 24 1/4” D x 65” H.
What temperature monitoring features are included?
It features a microprocessor-based controller with a digital display, along with integrated high/low temperature alarms and remote alarm contacts for facility monitoring systems.
What kind of warranty is included?
It comes with a standard one-year parts and labor warranty, plus an additional four-year compressor parts warranty.
Shipping FAQ
How is this unit shipped?
Given the glass door, this unit is shipped via LTL freight to ensure safe transit.
Is liftgate service recommended?
Yes, liftgate service is recommended to ensure the unit is safely lowered to ground level at your facility.
What should I do upon receipt?
Please inspect the glass door and exterior packaging immediately upon arrival for any signs of transit damage before signing the delivery receipt.
Any setup tips?
We recommend allowing the unit to stand in its final location for 24 hours before powering on to ensure the compressor oil settles properly.
