Description

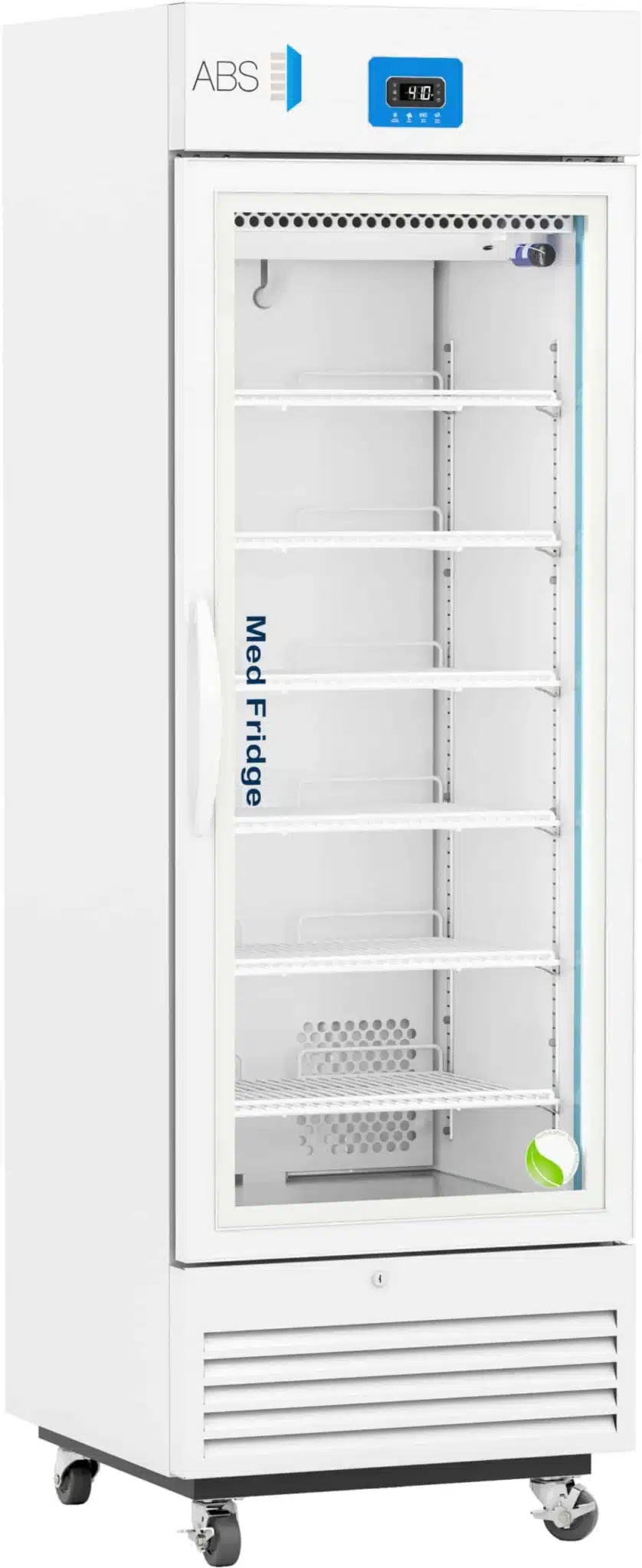

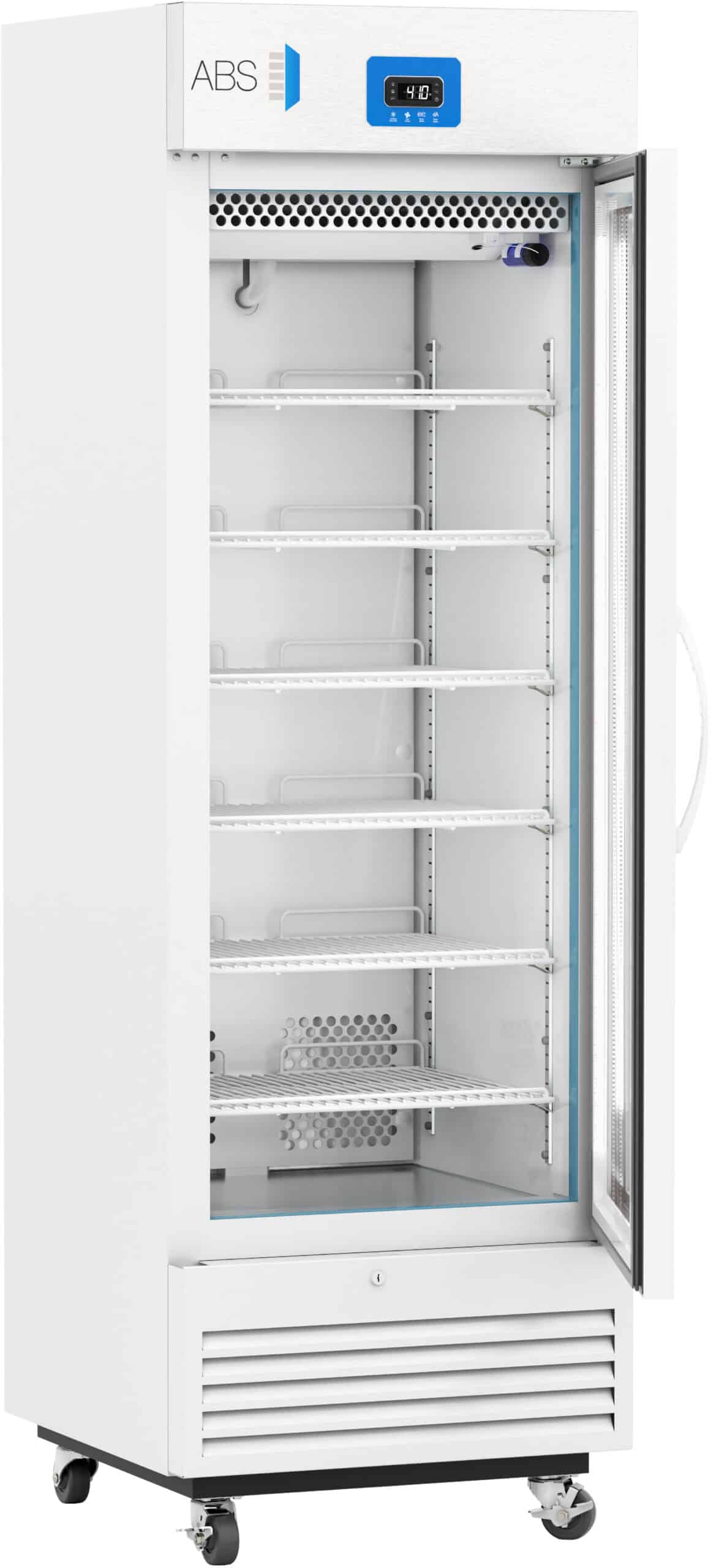

ABS PH-ABT-VS-16G Pharmacy Refrigerator Premier Glass Door
The ABS PH-ABT-VS-16G Pharmacy Refrigerator Premier Glass Door delivers exceptional temperature control with maximum variation of just +/- 1.5°C and stability of +/- 0.3°C using simulator ballast, making it the ideal storage solution for temperature-sensitive pharmaceuticals. This advanced pharmacy refrigerator features variable speed compressor technology that achieves remarkable efficiency, consuming less than 0.9 KWh per day while meeting ENERGY STAR v2.0 standards for laboratory refrigerators. The unit operates at whisper-quiet levels of 40 dBA or less, ensuring minimal disruption in clinical environments.
Engineered for demanding healthcare settings, the PH-ABT-VS-16G incorporates a microprocessor temperature controller with variable frequency compressor control, maintaining precise temperatures between 36°F to 46°F (2°C to 8°C). The system features forced draft air circulation with patented air flow technology, ensuring uniform temperature distribution throughout the 16 cubic foot interior. Six adjustable shelves provide flexible storage configurations, while the self-closing glass door with magnetic gasket maintains optimal conditions even during frequent access.
Built to last with white powder coated steel construction and high-density urethane foam insulation, the PH-ABT-VS-16G includes comprehensive monitoring capabilities with audible and visual alarms for high/low temperature, sensor error, power failure, and door ajar conditions. The unit features remote alarm contacts for integration with facility monitoring systems, a keyed door lock compatible with digital lock systems including Pyxis, Omnicell, and AcuDose RX, and safety-shielded LED interior lighting. With a generous 7-year compressor warranty and 2-year parts and labor coverage, this premier refrigerator delivers reliable long-term performance.
Key Features
- Variable speed compressor technology with EPA SNAP compliant R600a refrigerant
- Temperature stability of +/- 0.3°C with simulator ballast
- Energy consumption less than 0.9 KWh/day meeting ENERGY STAR v2.0
- 16 cubic foot capacity with six adjustable shelves
- Microprocessor controller with C°/F° switchable digital display
- ETL and C-ETL listed with 7-year compressor warranty
Benefits
- Exceptional temperature uniformity protects medication potency with +/- 1.5°C maximum variation
- Ultra-low energy consumption reduces operating costs while meeting environmental standards
- Whisper-quiet 40 dBA operation maintains peaceful clinical environments
- Compatible with Pyxis, Omnicell, and AcuDose RX digital lock systems for seamless integration
- Remote alarm contacts enable 24/7 monitoring through existing facility systems
- Pull down time under 30 minutes minimizes workflow disruption during installation
- Patented air flow technology ensures consistent conditions throughout the cabinet
Pharmacy Refrigerator Details:
- Storage capacity– 16 Cu. Ft.
- Door — One (1) swing glass door, self-closing, right hinged, not reversible, magnetic door gasket
- Shelves– Six (6) adjustable shelves (adjustable in ½” increments)
- Drawers– Non-applicable
- Mounting and Installation– Swivel casters – locking front casters
- Interior lighting– LED interior lights are safety shielded and switch controlled
- Airflow Management– Forced draft air circulation – Patented air flow technology
- External probe access– Probe access port (3/4″) on rear wall
- Insulation– Cabinet is foamed-in-place with EPA compliant high density urethane foam
- Exterior materials– White powder coated steel
- Access control– Keyed door lock; compatible with optional digital lock (including Pyxis, Omnicell, and AcuDose RX)
- General warranty– Two (2) year parts and labor warranty
- Compressor warranty– Seven (7) year compressor warranty
- Product Weight (lbs)– 243
- Shipping Weight (lbs)– 290
- Exterior Width (in)– 25″
- Exterior Depth (in)– 28.875″
- Exterior Height (in)– 79″
- Rated Amperage– 2 Amps
- Power Plug/Power Cord– NEMA 5-15 plug, vaccine storage power cord warning label
- Facility Electrical Requirement– 110 – 120V AC, 15A breaker, NEMA 5-15 receptacle
- Agency Listing and Certification– ETL, C-ETL listed. Meets or exceeds Energy Star v2.0 for Laboratory Refrigerators. Official listing pending – see energystar.gov
Pharmacy Refrigerator System:
- Compressor– Hermetic, Variable speed
- Refrigerant– EPA SNAP compliant R600a Isobutane (Hydrocarbon natural refrigerant)
- Condenser– Tube and grid, high efficiency fan forced air
- Evaporator– Fin and tube, high efficiency fan forced air
- Defrost– Cycle defrost
Pharmacy Refrigerator Temp Controller:
- Controller technology– Microprocessor temperature controller with variable frequency compressor control, C°/F° switchable, resolution is 0.1° C/0.2° F
- Noise pressure level (dBA)– 40 dBA or less installed
- Display technology– Digital Temperature Display
- Stability – simulator ballast (°C)– +/- 0.3° C
- Average heat rejection (BTU/h)– < 250 BTU/h
- Max temp variation – cabinet air (°C)– +/- 1.5° C
- Adjustable Temperature Range– 36° F to 46° F (2° C to 8° C), Calibrated using a NIST traceable device, certificate included
- External alarm connection– Remote alarm contacts
- Included accessories– Pharmacy refrigerator/freezer toolkit
- Battery Backup– For controller temperature display and alarms only, no cooling active
- Energy consumption (KWh/day)– <0.9 KWh/day *meets Energy Star v2.0 for Laboratory Refrigerators
- Display probe– Product simulator bottle with glass bead media
- Pull down time to nominal operating temp– < 30 min (empty)
- Alarms– Audible and visual high/low temperature alarms, remote alarm contacts, sensor error alarm, power failure alarm, door ajar alarm
Disclaimer(s): Refrigerator requires a minimum 2” of clearance at back and sides of the unit for proper ventilation
Performance Note Max temperature variation based on an empty chamber at steady state using 15 bare (unweighted) thermocouple probes. Product loading, door openings, and ambient conditions will affect performance. Stability of simulator ballast based on bottle probe provided with the unit located center of empty chamber at steady state, no door openings
We have a vast selection of laboratory refrigeration and freezer models to choose from, ranging down to Ultra-Low -86°C cascade freezers and -196°C cryogenic freezers.
