Description
Summit Pharmacy Vaccine Freezer Description:
Accucold’s Pharma-Vac Performance Series upright freezers are designed and purpose-built for pharmacy, medication, and vaccine applications, supporting compliance with CDC/VFC/VFA guidelines.

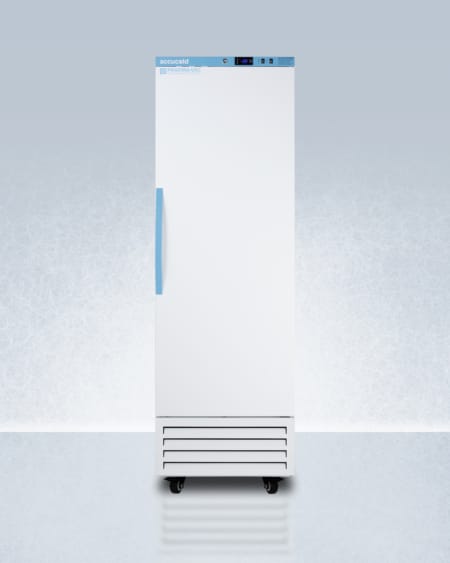

The Summit AFS14PV 9.53 cu.ft. Pharmacy Vaccine Freezer is an upright frost-free all-freezer with a temperature range of -30°C to -10°C as recommended for various vaccines and pharmaceuticals. The microprocessor temperature controller is externally located to minimize door openings, helping to protect stored contents from ambient temperature. The buffered temperature probe is encased in a glycol-filled bottle to better simulate the temperature of the stored product, with an additional sensor that reads air temperature to ensure superior temperature control. The current and min/max temperature display is viewable in Celsius or Fahrenheit . The audible and visual temperature alarm sounds if the unit’s interior goes out of range. Additional alarms include a power failure alert, door open alarm, and sensor failure alarm. This model is equipped with remote alarm contacts in the rear and a 1/2″ probe port on the right side to accept additional monitoring devices. A hospital-grade cord with a ‘green dot’ plug is also included for added safety in high-traffic areas.
Inside, this freezer has 9.53 cu. ft of storage space and features six adjustable plastic-coated wire shelves that can be positioned at 1/2″ increments to accommodate virtually any sized item. This unit includes LED internal lighting with an on/off rocker switch. The interior is constructed from white powder-coated metal to ensure added durability and better temperature retention.
The Summit AFS14PV 9.53 cu.ft. Pharmacy Vaccine Freezer comes in a white exterior finish with a blue accented control panel and user-reversible door. The factory-installed antimicrobial handle is powder-coated with naturally occurring silver ions, which help to reduce the spread of germs, allowing for a safer, cleaner user experience. This model includes a factory-installed lock and ships with two keys for staff use. Powerful magnetic gaskets ensure a positive seal. Four pre-installed 4″ high casters with brakes make it easier to move as needed.
Additional sizes and matching all-refrigerators are also available.
NOTE: Accucold freezers are purpose-built to meet the current CDC (Centers for Disease Control) guidelines for the storage of vaccines. For additional temperature assurance, the CDC recommends a calibrated digital data logger (DDL), which can be added with the factory-installed option DL2B or the DL2BKit accessory.
Summit Pharmacy Vaccine Freezer Features:
- 24″ Wide Upright All-Freezer– 24″ Wide upright Performance Series vaccine all-freezer designed for healthcare settings
- Performance Series freezer– Purpose-built all-freezer for vaccine storage in medical, pharmaceutical, and life science applications
- Purpose-built design– Designed and purpose-built for pharmacy, medication, and vaccine applications to support meeting CDC/VFC/VFA guidelines
- Spacious capacity– Over 9.5 cu.ft. of storage inside
- Frost-free operation– No-frost operation for minimal user maintenance
- +/-1ºC Variation– The published temperature variation is derived from the maximum deviation of an NTC sensor in a 1 oz. vial located nearest the chamber geometric center during a 24 hour test period
- Microprocessor control panel– Digital controls with a large LED readout in Celsius or Fahrenheit for intuitive temperature management
- Adjustable temperature– Intuitive controls let you adjust the interior temperature between -30°C to -10ºC
- High/low temperature alarm– Visual and audible alarms alert if the interior temperature rises or falls out of set range
- Remote alarm contacts– Electronic controller is equipped with a volt-free contact for alarm forwarding to an external remote system (contacts located in the external rear of the unit)
- Buffered temperature probe– Thermometer probe is encased in a glass bead-filled bottle to better simulate temperature readings closest to stored contents
- Open door alarm– Alarm will sound if the door is left ajar for over 4 minutes (adjustable from 1-99 minutes)
- Audible power failure alarm– Battery-powered alarm sounds if the power connection is interrupted
- Sensor failure alarm– Audible and visual alarm warns if the sensor is disrupted
- Access port– Includes a pre-installed 1/2″ probe hole in the right interior wall to allow easier connection to user-provided monitoring equipment
- Password protection– Control panel requires password entry to adjust the parameters beyond the set point
- Resettable min/max display– Control panel provides a readout of the low and high temperatures in 15 minute increments
- Interior light– Energy efficient LED lighting with internal on/off switch
- Durable interior– Walls are constructed from white powder coated metal for added strength and improved temperature retention
- Adjustable plastic-coated wire shelves for improved circulation– Unit’s six shelves can be positioned with a front lip for small storage items or reversed to a flat position to better hold larger items, with multiple shelf positions spaced at 1/2″ to accommodate virtually any size
- Flat door liner– No door storage to allow for the interior to accommodate deeper trays
- Self-closing door– Added protection in busy settings
- Reversible door– User-reversible door swing for added flexibility to best accommodate your setting
- Magnetic door gasket– Quality door gaskets ensure a tight seal for energy savings and improved performance
- Factory-installed lock– Conveniently located towards the top of the door for easier user access (2 keys included)
- Antimicrobial silver ion-coated handle– Powder-coated handle with naturally occurring silver ions to help reduce the spread of germs
- Hospital grade cord with ‘green dot’ plug– Secure three-pronged cord for added unit safety
- Extended warranty– 2 years parts and labor/5 years compressor
- Versatile design– Compatible with Pyxis®, Omnicell®, and AcuDose RX®
- 100% CFC free– Environmentally friendly design without ozone-damaging chemicals
- CARB compliant– Eco-friendly hydrocarbon-based refrigerant for a greener footprint that
Summit Pharmacy Vaccine Freezer Overview:
- Nominal Height– 75.0″
- Height of Cabinet– 74.38″
- Nominal Width– 24.0″
- Width– 23.5″
- Width with Door Open– 23.75″
- Nominal Depth– 26.0″
- Depth– 25.25″
- Depth with Handle– 26.75″
- Depth with door at 90°– 49.38″
- Capacity– 9.53 cu.ft.
- Defrost Type– Frost-Free
- Door– White
- Cabinet– White
- US Electrical Safety– ETL
- Canadian Electrical Safety– ETL-C
- Amps– 4.3
- Voltage/Frequency– 115 V AC/60 Hz
- Parts & Labor Warranty– 2 Years
- Compressor Warranty– 5 Years
Summit Pharmacy Vaccine Freezer Features:
- Door Swing– RHD
- Reversible– Yes
- Interior Height– 43.75″
- Interior Width– 15.25″
- Interior Depth– 16.5″
- Shelf Type– Wire
- Shelf Qty– 6
- Adjustable Shelves– Yes
- Thermostat Type– Digital
- Interior Light– Yes
- Fan Type– Interior
- Refrigerant Type– R290a
- Refrigerant Amount– 3.27 oz.
- High Side PSI– 280.0
- Low Side PSI– 130.0
- Wheels– 4
- Compressor Step Height– 10.0″
- Compressor Step Width– 15.25″
- Compressor Step Depth– 15.25″
- Temperature Range– -30 to -10ºC
Summit Appliance manufactures compact and specialty major appliances: including refrigerators, freezers, laboratory and scientific refrigeration and refrigerated and freezer drawers. Our products are grouped into: laboratory, medical and scientific refrigerators and freezers.
Product FAQ
What is the AFS14PV Pharmacy Vaccine Freezer and what is it used for?
The AFS14PV is a 9.53 cu ft upright frost-free freezer designed specifically for pharmacy, vaccine, and medical cold storage applications that require reliable temperature control and compliance with healthcare standards.
What are the key technical specifications?
Key features include a temperature range of -30 °C to -10 °C, frost-free operation, microprocessor digital temperature controller, buffered temperature probe in glycol solution, six adjustable wire shelves, LED interior lighting, hospital-grade power cord, and a digital display with min/max readout.
What safety and alarm features does it include?
The freezer includes audible and visual high/low temperature alarms, a power failure alarm, door open alarm, and sensor failure alert. It also features remote alarm contacts and a ½-inch probe port for external monitoring devices.
What warranty coverage does the AFS14PV include?
This model comes with a two-year parts and labor warranty and a five-year compressor warranty.
What environments is this freezer best suited for?
The AFS14PV is ideal for pharmacies, hospitals, laboratories, and vaccine storage facilities that need consistent, precise temperature performance and alarm protection to safeguard sensitive materials.
Shipping FAQ
How long does shipping take after I place my order?
Orders are typically processed and shipped within one to two business days. Delivery time will depend on your location and the selected shipping method.
Do you offer international shipping?
Yes. International shipping is available to most regions. Buyers are responsible for any customs duties, taxes, or import compliance fees required in their country.
How is the freezer packaged for shipment?
Each unit is packaged with protective foam and placed on a secure pallet to prevent vibration or damage during transit. Packaging is designed to keep the freezer upright and stable throughout shipping.
What should I do if my unit arrives damaged or is delayed?
If your shipment arrives damaged or experiences significant delay, contact our support team immediately with your order number and tracking details so we can coordinate with the carrier to resolve the issue.
Application FAQ
How do I set up and calibrate the AFS14PV for vaccine storage?
Place the freezer on a level surface with at least two inches of ventilation clearance. Plug it into a dedicated grounded outlet and use the external digital control to set the desired temperature within the -30 °C to -10 °C range. Verify that alarms and temperature displays are functioning before loading contents.
What best practices should I follow when loading vaccines or medical supplies?
Arrange stored items to allow airflow between shelves. Avoid overpacking, and ensure the door closes fully. Check door gaskets regularly and monitor alarm notifications to ensure temperature stability at all times.
Can the AFS14PV connect to external monitoring systems?
Yes. The freezer includes remote alarm contacts and a ½-inch probe port that allow connection to facility-based monitoring systems or external temperature probes for continuous data tracking.
What should I do if a temperature alarm or power failure occurs?
If an alarm sounds, record the time and temperature, confirm power supply, and move sensitive contents to a backup storage unit if necessary. Once the issue is resolved, reset the alarm and verify that normal operation has resumed.
What maintenance is recommended for this freezer?
Regularly clean the condenser and ventilation areas, inspect door seals, and test alarm and sensor functionality monthly. Document all maintenance checks for compliance and service records.
