Summit ACR52G Vaccine Built-In Healthcare Refrigerator

Description

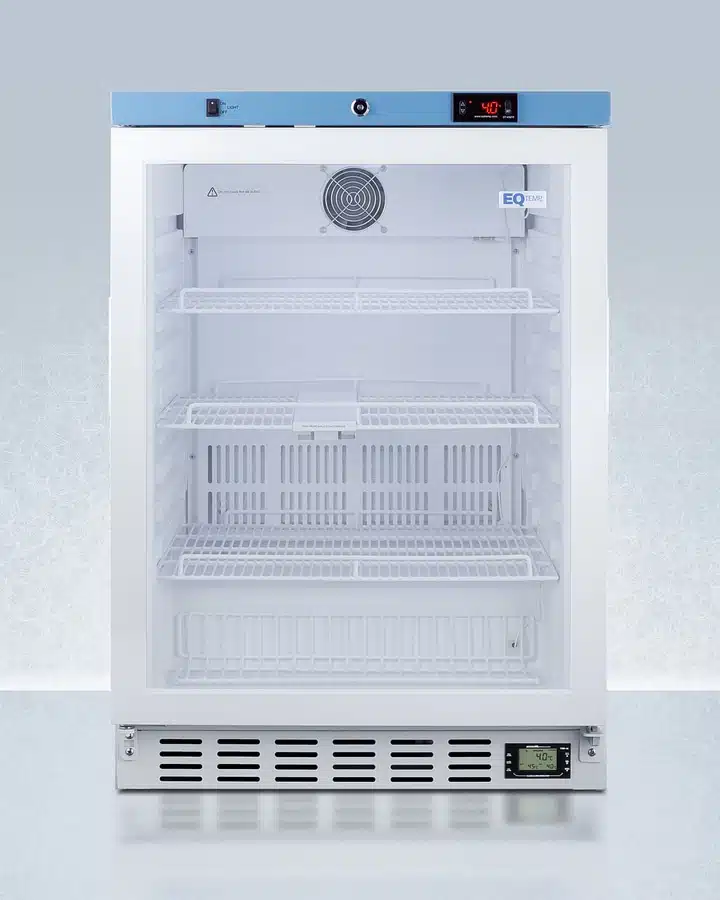

Summit ACR52G Vaccine Built-In Healthcare Refrigerator

EQTemp by Accucold introduces a new series of affordable, specialty refrigeration solutions for healthcare facilities seeking specialized cold storage.

Summit ACR52G Vaccine Built-In Healthcare Refrigerator is an upright 3.88 cu.ft. all-refrigerator. It features a clean white exterior and a blue-accented control panel. The glass door is equipped with a self-closing mechanism to help protect stored items from being overexposed to room temperature. A factory-installed lock offers added security, and the hospital-grade cord with a ‘green dot’ plug ensures a secure connection for high-traffic areas. This unit features a front-breathing design for safe built-in installation under counters. The fully finished cabinet also allows freestanding use.

The Summit ACR52G Vaccine Built-In Healthcare Refrigerator includes an external readout of the interior temperature and the high/low temperature. The buffered temperature probe is encased in a bottle filled with glass beads for improved accuracy. The digital temperature controls allow you to set the interior between 2 and 8ºC. An audible alarm sounds if the temperature goes out of range. We also include a pre-installed 3/8″ access port for users to add their own monitoring equipment if preferred.

The interior includes one wire shelf in the center to hold the temperature probe, as well as two additional adjustable shelves to accommodate different sizes. Internal LED lighting provides an efficient and convenient view. Automatic defrost reduces user maintenance, and an internal fan ensures robust temperature recovery after door openings.

This unit is also available certified to the NSF/ANSI 456 Vaccine Storage Standard with the upgrade of a NIST calibrated temperature readout (see model ACR52GNSF456). Additional sizes are available, as well as more advanced cold storage equipment purpose-built for laboratory and life science storage. Browse the complete product line to explore our extensive selection.

Note: EQTemp’s ACR Series refrigerators are intended for various healthcare storage applications. Storage of high-value vaccines, life science materials, and medical/clinical biologicals requires a product offering tighter temperature control and/or alarms, monitoring, and backup.

Vaccine Refrigerator Features:

• EQTemp Healthcare Refrigerator– All-refrigerator designed to operate between 2 and 8ºC for a variety of storage application in medical offices and other healthcare facilities
• Temperature Range: 2º to 8ºC– Preset to 5ºC as recommended for many storage applications
• Digital thermostat– Digital microprocessor for easy and precise temperature management, with all controls externally located for added convenience
• External temperature readout– Includes continuous display of the current interior and high/low temperature, and can be switched from Celsius to Fahrenheit at the touch of a button
• High/low temperature alarm– Audible alarm sounds if the interior temperature rises or falls out of set range
• Built-In capable– Front-breathing design lets you make the best use of space by installing your appliance under the counter
• Buffered temperature probe– Thermometer probe is encased in a glass bead-filled bottle and stored in a fixed box on the center shelf. This is the ideal way to produce temperature readings closest to stored contents, as recommended by the CDC and VFC’s guidelines
• Access port– 3/8″ probe hole with cover is pre-installed in unit’s side to allow easy installation of user-provided monitoring equipment
• Factory installed lock– Keyed lock for a secure interior (2 keys included)
• Automatic defrost– Reduced user maintenance with automatic defrost
• Internal fan– Fan-forced cooling ensures the unit is evenly cooled from top to bottom
• Hospital grade cord with ‘green dot’ plug– Secure three-pronged cord for added unit safety in high traffic areas
• Fixed center shelf– Center shelf is fixed in place in order to provide the optimum position for the TMD to provide the most accurate temperature readings
• Flat door liner– No door storage to allow for the interior to accommodate deeper trays
• LED lighting– Attractively illuminates the interior in a gentle white hue for easy viewing
• Foamed-in-place cabinet– Quality design ensures efficiently insulated interior
• Temperature memory function– Unit will retain its last settings when power is restored in the event of power loss
• Self-closing door– Door will automatically close when left ajar, preventing items from accidentally being left exposed to ambient temperatures
• Pocket handle– Handle is recessed into the side of the door to ensure no added depth
• Open door alarm– Audible alarm sounds if the door is left open for more than one minute
• Digital thermostat– Digital microprocessor for easy and precise temperature management, with all controls externally located for added convenience
• Magnetic door gasket– Quality door gaskets ensure a tight seal for energy savings and improved performance
• Fully finished white cabinet– Allows the unit to be used freestanding
• CARB Compliant– Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
• 100% CFC free– Environmentally friendly design without ozone-damaging chemicals

Refrigerator Specifications:

• Height of Cabinet– 34.0″
• Width– 23.5″
• Width with Door Open– 23.75″
• Depth– 21.75″
• Depth with door at 90°– 43.75″
• Capacity– 3.88 cu.ft.
• Defrost Type– Automatic
• Door– Glass
• Cabinet– White
• US Electrical Safety– ETL
• Canadian Electrical Safety– ETL-C
• Amps– 2.0
• Voltage/Frequency– 115 V AC/60 Hz
• Weight– 91.5 lbs.
• Shipping Weight– 150 lbs.
• Parts & Labor Warranty– 1 Year
• Compressor Warranty– 5 Years

Refrigerator Features

• Door Swing– RHD
• Reversible– Factory Reversible
• Shelf Type– Wire
• Shelf Qty– 3
• Thermostat Type– Digital
• Fan Type– Interior
• Refrigerant Type– R600a
• Refrigerant Amount– 1.23oz.
• High Side PSI– 1.45
• Low Side PSI– 0.85
• Temperature Range– 2º to 8ºC
• Interior Light– Yes

Refrigerator Dimensions:

• Interior Height– 25.88″
• Interior Width– 18.75″
• Interior Depth– 16.5″
• Compressor Step Height– 4.0″
• Compressor Step Width– 18.75″
• Compressor Step Depth– 11.5″

Brochure-ACR52G

Summit Appliance manufactures compact and specialty major appliances: including refrigerators, freezers, laboratory and scientific refrigeration and refrigerated and freezer drawers. Our products are grouped into: laboratory, medical and scientific refrigerators and freezers.
