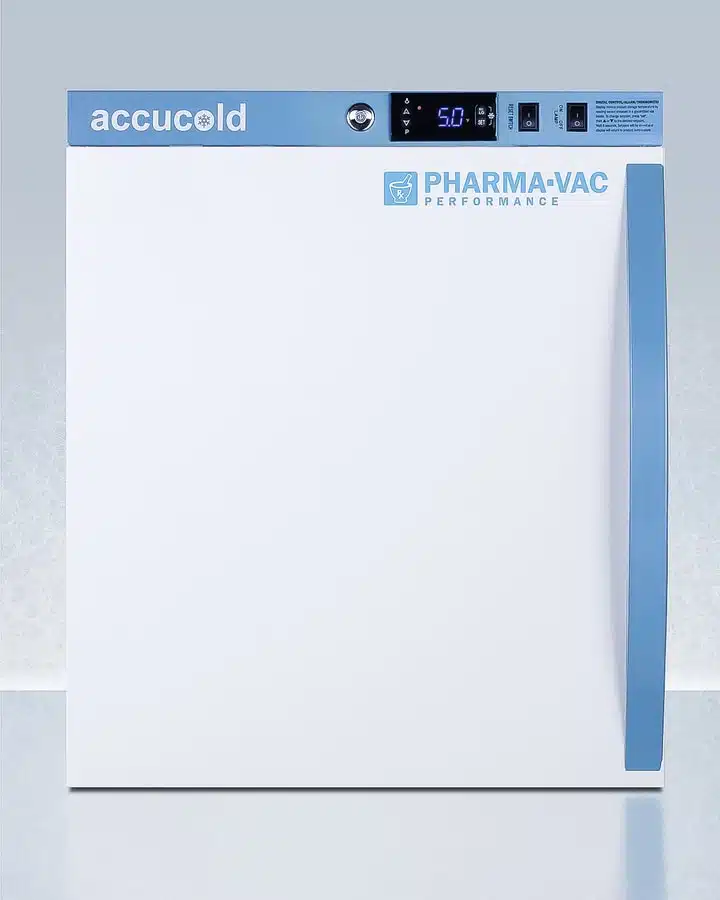

Summit ARS2PV456LHD Compact Vaccine Medical Refrigerator

Description

Summit ARS2PV456LHD Compact Vaccine Medical Refrigerator

Accucold is proud to lead the industry with the largest line of cold storage product sizes certified to NSF/ANSI 456 Vaccine Storage Standard. The Pharma-Vac Performance Series supports meeting regulations and guidelines from the CDC, State Agencies, World Health Organization, and other Health Ministries on vaccine storage and handling.

The Summit ARS2PV456LHD Compact Vaccine Medical Refrigerator is a 1.94 cu.ft. all-refrigerator with an adjustable control range from +2 to +8ºC. The microprocessor temperature controller is externally located to minimize door openings, helping to protect stored contents from ambient temperature. The buffered temperature probe is encased in a glycol-filled bottle to better simulate temperature of the stored product, with an additional sensor that reads air temperature to ensure superior temperature control. The current and min/max temperature display is viewable in Celsius or Fahrenheit to the nearest tenth of a degree. The audible and visual temperature alarm sounds if the unit’s interior goes out of range. Additional alarms include a power failure alert, door open alarm, and sensor failure alarm. This unit is equipped with remote alarm contacts in the rear and a 1/2″ probe port on the right side to accept additional monitoring devices. This unit comes with a hospital grade cord with a green dot plug for added safety in high traffic areas.

Inside, the Summit ARS2PV456LHD Compact Vaccine Medical Refrigerator utilizes adjustable cycle defrost operation to avoid temperature spikes. Optimized forced air cooling with one internal fan ensures excellent temperature stability and uniformity with rapid recovery after door openings. The adjustable plastic-coated wire shelves can be positioned at 1/2″ increments to accommodate virtually any sized item. This unit includes LED internal lighting with an on/off rocker switch. The interior is constructed from white powder coated metal to ensure added durability and better temperature retention.

The Summit ARS2PV456LHD Compact Vaccine Medical Refrigerator comes in a white cabinet finish with a blue accented control panel. The factory-installed antimicrobial handle is powder-coated with naturally occurring silver ions, which help to reduce the spread of germs, allowing for a safer, cleaner user experience. The door ships with a left hand swing and self-closing function. This model includes a factory-installed lock and ships with two keys for staff use. Powerful magnetic gaskets ensure a positive seal.

Designed with hydrocarbon refrigerant, this unit provides an energy efficient solution to vaccine storage. This unit is Pyxis, Omnicell, and AcuDose RX compatible. Additional sizes, as well as solid door options, are also available. Explore the full Pharma-Vac NSF 456 series at accucold.com/pharmavac.

ABOUT NSF 456: NSF/ANSI 456 is a voluntary standard introduced in 2021 that was designed to establish the performance and construction requirements for vaccine refrigeration. Models certified to this standard undergo strict testing to confirm temperatury consistency. All Accucold units approved to NSF 456 for vaccine storage are certified by an independent testing agency.

Vaccine Refrigerator Features:

• Certified to NSF/ANSI 456 Vaccine Storage Standard– Designed and tested to comply with the new NSF Vaccine Storage Standard
• Purpose-built design– Designed and purpose-built for pharmacy, medication, and vaccine applications to support meeting CDC/VFC guidelines
• +/-1ºC Variation– The published temperature variation is derived from the maximum deviation of an NTC sensor in a 1 oz. vial located nearest the chamber geometric center during a 24 hour test period
• Adjustable temperature– Intuitive controls let you adjust the interior temperature between +2 to +8ºC
• Certificate of calibration included– 2-year calibration certificate included for your records
• Adjustable temperature– Intuitive controls let you adjust the interior temperature between +2 to +8ºC
• Temperature alarm– Visual and audible alarms alert if the interior temperature rises or falls out of set range
• Remote alarm contacts– Electronic controller is equipped with a volt-free contact for alarm forwarding to an external remote system (contacts located in the external rear of the unit)
• Automatic defrost with adjustable cycle defrost– Adjustable cycle defrost operation ensures the unit avoid temperature spikes and ice buildup
• Access port– Includes a pre-installed 1/2″ probe hole in the right interior wall to allow easier connection to user-provided monitoring equipment
• Open door alarm– Alarm will sound if the door is left ajar for over 4 minutes (adjustable from 1-99 minutes)
• Audible power failure alarm– Battery-powered alarm sounds if the power connection is interrupted
• Sensor failure alarm– Audible and visual alarm warns if the sensor is disrupted
• Password protection– Control panel requires password entry to adjust the parameters beyond the set point
• Microprocessor control panel– Digital controls with a large LED readout in Celsius or Fahrenheit for intuitive temperature management
• Resettable min/max display– Control panel provides a readout of the low and high temperatures in 15 minute increments
• Factory-installed lock– Keyed lock conveniently located towards the top of the door for added security (2 keys included)
• Adjustable plastic-coated wire shelves for improved circulation– Multiple shelf positions spaced at 1/2″ to accommodate virtually any size
• Hospital grade cord with ‘green dot’ plug– Secure three-pronged cord for added unit safety
• Durable interior– Walls are constructed from white powder coated metal for added strength and improved temperature retention
• Interior light– Energy efficient LED lighting with internal on/off switch
• Self-closing door— Added protection in busy settings; NOTE: door is not self-closing once reversed to an LHD swing
• Double pane tempered glass door– Provides a full display of stored contents
• Left hand door swing– For this unit with the door opening from the other side, order as SKU ARS2PV456
• Magnetic door gasket– Quality door gaskets ensure a tight seal for energy savings and improved performance
• Extended warranty– 2 years parts and labor/5 years compressor
• Eco-Friendly– Using environmentally friendly hydrocarbons refrigerants for a greener footprint
• Usage stickers– Ships with removable warning stickers for “DO NOT UNPLUG,” “DO NOT ADJUST TEMPERATURE,” and “DO NOT STORE PERSONAL ITEMS”
• Additional choices– Solid and glass door choices available from 1 to 18 cu.ft.
• Versatile design– Compatible with Pyxis®, Omnicell®, and AcuDose RX®
• Matching freezer– Pair with Accucold AFZ1PV to create a matching set
• 100% CFC free– Environmentally friendly design without ozone-damaging chemicals
• CARB Compliant– Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

Vaccine Refrigerator Overview:

• Height of Cabinet– 22.25″
• Width– 18.5″
• Width with Door Open– 18.88″
• Depth– 23.25″
• Depth with Handle– 24.75″
• Depth with door at 90°– 42.5″
• Capacity– 1.94 cu.ft.
• Defrost Type– Automatic
• Door– White
• Cabinet– White
• US Electrical Safety– ETL
• Canadian Electrical Safety– ETL-C
• Sanitation– ETL-S to NSF 456
• Amps– 0.6
• Voltage/Frequency– 115 V AC/60 Hz
• Weight– 80.0 lbs.
• Shipping Weight– 86.0 lbs.
• Parts & Labor Warranty– 2 Years
• Compressor Warranty– 5 Years

Vaccine Refrigerator Features

• Door Swing– LHD
• Reversible– No
• Shelf Type– Wire
• Shelf Qty– 2
• Adjustable Shelves– Yes
• Thermostat Type– Digital
• Fan Type– Interior
• Refrigerant Type– R600a
• Refrigerant Amount– .84oz.
• High Side PSI– 280.0
• Low Side PSI– 90.0
• Interior Light– Yes
• Temperature Range– 2 to 8ºC

Dimensions:

• Interior Height– 16.5″
• Interior Width– 15.25″
• Interior Depth– 15.75″
• Compressor Step Height– 8.25″
• Compressor Step Width– 15.25″
• Compressor Step Depth– 4.25″

Brochure-ARS2PV456LHD
