Summit Vaccine Refrigerator Freezer Description:
Accucold offers innovative solutions to vaccine storage with our Performance Series stackable purpose-built refrigerator-freezer combinations designed to support meeting CDC/VFC/VFA guidelines.

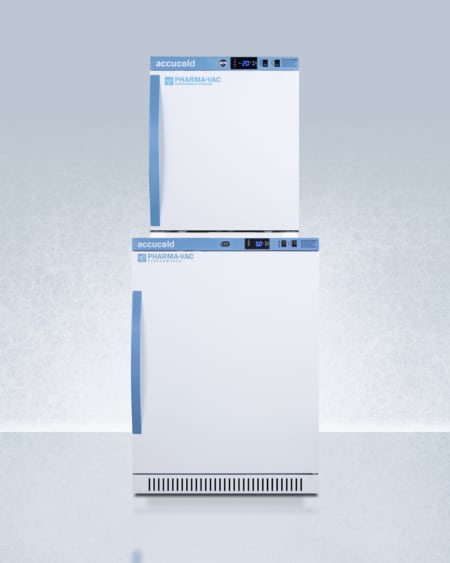

Sized just under 20″ wide, the Summit ARS6PV-AFZ1PVSTACK Vaccine Refrigerator Freezer combines the 6 cu.ft. ARS6PV auto defrost all-refrigerator with the 1.4 cu.ft. AFZ1PV all-freezer into one slim footprint using Accucold’s StackRack. This ships in three boxes and requires some minor assembly upon delivery.
The Pharma-Vac Performance Series is designed to meet the demanding needs of vaccine storage. Both units utilize a microprocessor temperature controller (refrigerator range: +2 to +8ºC; freezer range: -30 to -10ºC). The buffered temperature probe is encased in a glycol-filled bottle to better simulate temperature of the stored product, with an additional sensor that reads air temperature to ensure superior temperature control. The current and min/max temperature display is viewable in Celsius or Fahrenheit to the nearest tenth of a degree. The audible and visual temperature alarms sound if the units’ interiors go out of range. Additional alarms include a power failure alert, door open alarm, and sensor failure alarm. Both units are equipped with remote alarm contacts in the rear and a 1/2″ probe port on the right side to accept additional monitoring devices. The factory-installed antimicrobial handles are powder-coated with naturally occurring silver ions, which help to reduce the spread of germs, allowing for a safer, cleaner user experience. A hospital grade cord with ‘green dot’ plug is also included for added safety in high traffic areas.
Inside, the ARG6PV refrigerator utilizes adjustable cycle defrost operation to avoid temperature spikes. Optimized forced air cooling with an internal fan ensures excellent temperature stability and uniformity with rapid recovery after door openings. The adjustable plastic-coated wire shelves can be positioned at 1/2″ increments to accommodate virtually any sized item. This unit includes LED internal lighting with an on/off rocker switch. The interior is constructed from white powder coated metal to ensure added durability and better temperature retention.
Freezer model AFZ1PV can be installed on top of the refrigerator with our stacking rack. This freezer utilizes static manual defrost operation. It comes with two adjustable shelves.
Both Summit ARS6PV-AFZ1PVSTACK Vaccine Refrigerator Freezer include front-mounted keyed locks and powerful magnetic gaskets to ensure a positive seal, with self-closing doors for added protection in high traffic settings. Additional stacked combinations are available.
NOTE: Accucold refrigerators are purpose-built to the support meeting the current CDC (Centers for Disease Control) guidelines for the storage of vaccines. As referenced in the current Vaccine Storage and Handling Toolkit, these units incorporate microprocessor controls and forced air circulation for stable operation between 2 and 8ºC. For additional temperature assurance, the CDC recommends a calibrated digital data logger (DDL), which can be added with the factory-installed option DL2B or addition of the DL2BKit accessory.
Summit Vaccine Refrigerator Freezer Features:
- Performance Series Refrigerator-Freezer Combination– Purpose-built all-refrigerator and all-freezer for vaccine storage in medical, pharmaceutical, and life science applications
- Purpose-built design– Designed and purpose-built for pharmacy, medication, and vaccine applications to support meeting CDC/VFC/VFA guidelines
- +/-1ºC Variation– The published temperature variation is derived from the maximum deviation of an NTC sensor in a 1 oz. vial located nearest the chamber geometric center during a 24 hour test period
- Space-saving design– Allows you to create a full refrigerator-freezer with independent controls in a slim-fitting footprint
- Easy assembly– Unit ships in three boxes for customer to install the StackRack on the bottom refrigerator/freezer and place and secure the other unit on top
- Antimicrobial silver ion-coated handles– Powder-coated handles with naturally occurring silver ions to help reduce the spread of germs
- Adjustable temperature– Intuitive controls let you adjust the interior temperature between +2 to +8ºC (refrigerator) and -30º to -10ºC (freezer)
- Temperature alarms– Visual and audible alarms alert if the interior temperature rises or falls out of set range
- Remote alarm contacts– Electronic controller is equipped with a volt-free contact for alarm forwarding to an external remote system (contacts located in the external rear of the unit)
- Automatic defrost with adjustable cycle defrost (refrigerator)– Adjustable cycle defrost operation ensures the unit avoid temperature spikes and ice buildup
- Manual defrost (freezer)– Static cooling system for reduced temperature fluctuations
- Access ports– Both units include a pre-installed probe hole to allow easier connection to user-provided monitoring equipment
- Open door alarms–Alarms will sound if the door is left ajar for over 4 minutes (adjustable from 1-99 minutes)
- Audible power failure alarms– Battery-powered alarms sound if the power connection is interrupted
- Sensor failure alarms– Audible and visual alarms warn if the sensor is disrupted
- Password protection– Control panels require password entry to adjust the parameters beyond the set point
- Microprocessor control panels– Digital controls with a large LED readout in Celsius or Fahrenheit for intuitive temperature management
- Resettable min/max displays– Control panels provide a readout of the low and high temperatures in 15 minute increments
- Factory-installed locks– Keyed lock conveniently located towards the top of the door for added security (2 keys included for each unit)
- Adjustable plastic-coated wire shelves for improved circulation– Designed to accommodate a variety of sizes for flexible storage
- Hospital grade cord with ‘green dot’ plug– Secure three-pronged cord for added unit safety
- Interior light– Energy efficient LED lighting with internal on/off switch
- Self-closing door– Added protection in busy settings; NOTE: door is not self-closing once reversed to an LHD swing
- Magnetic door gaskets– Quality door gaskets ensure a tight seal for energy savings and improved performance
- Extended warranty– 2 years parts and labor/5 years compressor
- Eco-Friendly (refrigerator)– Using environmentally friendly hydrocarbons refrigerants for a greener footprint
- Usage stickers– Ships with removable warning stickers for “DO NOT UNPLUG,” “DO NOT ADJUST TEMPERATURE,” and “DO NOT STORE PERSONAL ITEMS”
- Versatile design– Compatible with Pyxis®, Omnicell®, and AcuDose RX®
- 100% CFC free– Environmentally friendly design without ozone-damaging chemicals
- CARB Compliant– Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
Summit Vaccine Refrigerator Freezer Overview:
- Nominal Height– 55.0″
- Height of Cabinet– 54.75″
- Nominal Width– 24.0″
- Width– 23.38″
- Nominal Depth– 25.0″
- Depth– 24.38″
- Capacity– 7.4 cu.ft.
- Door– White
- Cabinet– White
- US Electrical Safety– ETL
- Canadian Electrical Safety– ETL-C
- Voltage/Frequency– 115 V AC/60 Hz
- Parts & Labor Warranty– 2 Years
- Compressor Warranty– 5 Years
Summit Vaccine Refrigerator Freezer Features:
- Door Swing– RHD
- Reversible– Yes
- Adjustable Shelves– Yes
- Interior Light– Yes
- Refrigerator – Interior Height– 24.5″
- Refrigerator – Interior Width– 20.0″
- Refrigerator – Interior Depth– 17.0″
- Refrigerator – Capacity– 6.0 cu.ft
- Refrigerator – Shelf Type– Wire
- Refrigerator – Shelf Qty– 4
- Refrigerator – Temperature Range– 2 to 8ºC
- Refrigerator – Refrigerant Type- R600a
- Refrigerator – Refrigerant Amount– 1.66 oz.
- Freezer – Interior Height– 16.5″
- Freezer – Interior Width- -15.25″
- Freezer – Interior Depth– 15.75″
- Freezer – Capacity– 1.4 cu.ft
- Freezer – Shelf Type– Wire
- Freezer – Shelf Qty- -2
- Thermostat Type– Digital
- Fan Type– Interior
- Freezer – Temperature Range– -30 to -10ºC
- Freezer – Refrigerant Type– R290a
- Freezer – Refrigerant Amount– 0.85 oz.
Summit Appliance manufactures compact and specialty major appliances: including refrigerators, freezers, laboratory and scientific refrigeration and refrigerated and freezer drawers. Our products are grouped into: laboratory, medical and scientific refrigerators and freezers.
Product FAQ
What is the ARS6PV-AFZ1PVSTACK?
A stacked, space-saving vaccine cold-storage solution that pairs a purpose-built pharmaceutical refrigerator (ARS6PV) with a matching pharmaceutical freezer (AFZ1PV) using a factory stack rack for a unified footprint.
What temperature ranges do the compartments maintain?
The refrigerator is designed for +2 °C to +8 °C vaccine storage. The freezer maintains sub-zero temperatures suitable for frozen vaccines (typically ≤ –20 °C). Each compartment has its own microprocessor control and digital display.
What monitoring and alarms are included?
Both sections feature high/low temperature alarms (audible/visual), power-failure alert, door-ajar alarm, alarm mute with auto-reset, and remote alarm contacts for connection to external monitoring systems.
How is temperature sensing handled?
Each compartment uses a buffered probe (in glycol or similar medium) to reflect product temperature rather than air spikes, improving measurement stability during door openings.
What construction details support vaccine storage?
Forced-air circulation for uniformity, hospital-grade power cord, factory-installed lock(s) with keys, cleanable gasket design, adjustable shelving, and an easy-read controller with password protection to prevent accidental changes.
Shipping FAQ
How does the unit ship?
The refrigerator, freezer, and stack rack are typically palletized and shipped via freight. Inspect packaging upon arrival and note any damage with the carrier before signing.
What are the electrical requirements?
Both sections are standard North American 115 V AC / 60 Hz. They may share a circuit in low-load environments, but dedicated circuits are recommended in clinical settings. Use only grounded outlets—no extension cords.
Are there installation clearances?
Allow clearance at the sides and rear for ventilation and service access, and ensure the stacked height fits beneath ceiling fixtures. Level the base to maintain door sealing and temperature uniformity.
Application FAQ
Is this suitable for CDC/WHO vaccine storage guidance?
Yes. The refrigerator section is intended for +2 °C to +8 °C vaccines and the freezer section for frozen vaccines at sub-zero temperatures. Always verify your facility’s SOPs and regulatory requirements before use.
Can it integrate with external monitoring?
Yes. Remote alarm/contact outputs allow tie-in to building or third-party monitoring systems. Many facilities also place an independent data logger in each compartment for continuous recording.
What daily-use practices are recommended?
Place a certified min/max data logger in product-representative locations, avoid blocking airflow with overpacked shelves, label zones for different vaccines, and record temperatures at the start of each shift per SOP.
