Description
Summit Undercounter ADA Vaccine Refrigerator Description:
Accucold is proud to lead the industry with the largest line of cold storage product sizes certified to NSF/ANSI 456 Vaccine Storage Standard. The Pharma-Vac Performance Series supports meeting regulations and guidelines from the CDC, State Agencies, World Health Organization, and other Health Ministries on vaccine storage and handling.

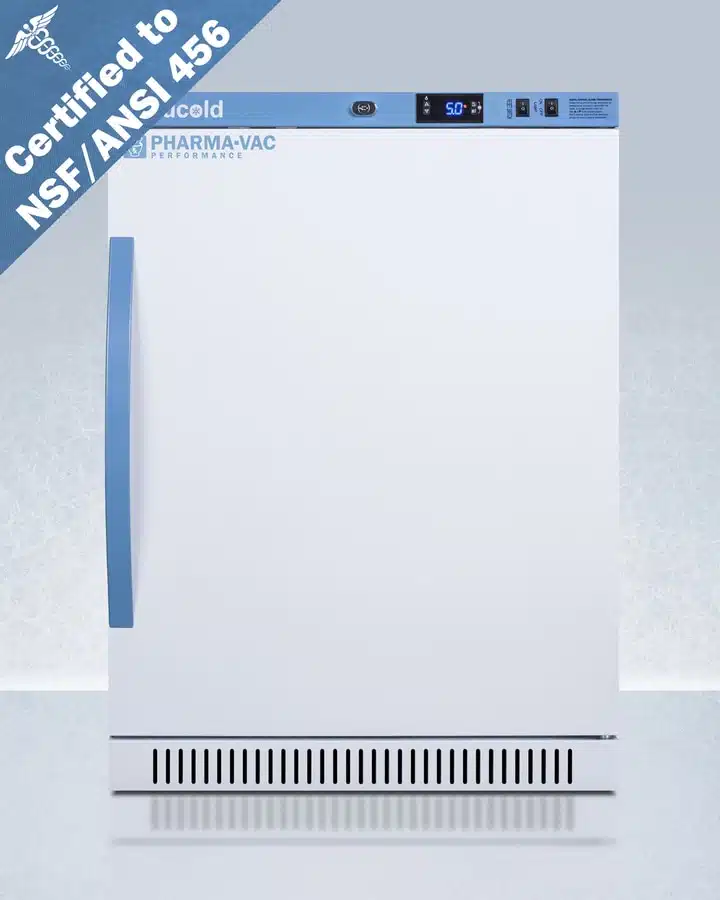

The Summit ARS6PV456 Undercounter ADA Vaccine Refrigerator is a 6 cu.ft. all-refrigerator sized at 32.5 inches high for use in most ADA compliant applications. The adjustable control range allows you to manage the temperature between +2 to +8ºC. The microprocessor temperature controller is externally located to minimize door openings, helping to protect stored contents from ambient temperature. The buffered temperature probe is encased in a glycol-filled bottle to better simulate temperature of the stored product, with an additional sensor that reads air temperature to ensure superior temperature control. The current and min/max temperature display is viewable in Celsius or Fahrenheit to the nearest tenth of a degree. The audible and visual temperature alarm sounds if the unit’s interior goes out of range. Additional alarms include a power failure alert, door open alarm, and sensor failure alarm. This unit is equipped with remote alarm contacts in the rear and a 1/2″ probe port on the right side to accept additional monitoring devices. This unit comes with a hospital grade cord with a green dot plug for added safety in high traffic areas.
Inside, the Summit ARS6PV456 Undercounter ADA Vaccine Refrigerator utilizes adjustable cycle defrost operation to avoid temperature spikes. Optimized forced air cooling with one internal fan ensures excellent temperature stability and uniformity with rapid recovery after door openings. The adjustable plastic-coated wire shelves can be positioned at 1/2″ increments to accommodate virtually any sized item. This unit includes LED internal lighting with an on/off rocker switch. The interior is constructed from white powder coated metal to ensure added durability and better temperature retention.
The Summit ARS6PV456 Undercounter ADA Vaccine Refrigerator comes in a white cabinet finish with a blue accented control panel. The factory-installed antimicrobial handle is powder-coated with naturally occurring silver ions, which help to reduce the spread of germs, allowing for a safer, cleaner user experience. The door ships with a right hand swing and self-closing function. This model includes a factory-installed lock and ships with two keys for staff use. Powerful magnetic gaskets ensure a positive seal.
Designed with hydrocarbon refrigerant, the ARS6PV456 provides an energy efficient solution to vaccine storage. This unit is Pyxis, Omnicell, and AcuDose RX compatible. Additional sizes, as well as solid door options, are also available. Explore the full Pharma-Vac NSF 456 series at accucold.com/pharmavac.
ABOUT NSF 456: NSF/ANSI 456 is a voluntary standard introduced in 2021 that was designed to establish the performance and construction requirements for vaccine refrigeration. Models certified to this standard undergo strict testing to confirm temperatury consistency. All Accucold units approved to NSF 456 for vaccine storage are certified by an independent testing agency.
Summit Undercounter ADA Vaccine Refrigerator Features:
- Certified to NSF/ANSI 456 Vaccine Storage Standard– Designed and tested to comply with the new NSF Vaccine Storage Standard
- Purpose-built design– Designed and purpose-built for pharmacy, medication, and vaccine applications to support meeting CDC/VFC guidelines
- +/-1ºC Variation– The published temperature variation is derived from the maximum deviation of an NTC sensor in a 1 oz. vial located nearest the chamber geometric center during a 24 hour test period
- Certificate of calibration included– 2-year calibration certificate included for your records
- Antimicrobial silver ion-coated handle– Powder-coated handle with naturally occurring silver ions to help reduce the spread of germs
- Adjustable temperature– Intuitive controls let you adjust the interior temperature between +2 to +8ºC
- Temperature alarm– Visual and audible alarms alert if the interior temperature rises or falls out of set range
- Remote alarm contacts– Electronic controller is equipped with a volt-free contact for alarm forwarding to an external remote system (contacts located in the external rear of the unit)
- Automatic defrost with adjustable cycle defrost– Adjustable cycle defrost operation ensures the unit avoid temperature spikes and ice buildup
- Access port– Includes a pre-installed 1/2″ probe hole in the right interior wall to allow easier connection to user-provided monitoring equipment
- Open door alarm– Alarm will sound if the door is left ajar for over 4 minutes (adjustable from 1-99 minutes)
- Audible power failure alarm– Battery-powered alarm sounds if the power connection is interrupted
- Sensor failure alarm– Audible and visual alarm warns if the sensor is disrupted
- Password protection– Control panel requires password entry to adjust the parameters beyond the set point
- Microprocessor control panel– Digital controls with a large LED readout in Celsius or Fahrenheit for intuitive temperature management
- Resettable min/max display– Control panel provides a readout of the low and high temperatures in 15 minute increments
- Factory-installed lock– Keyed lock conveniently located towards the top of the door for added security (2 keys included)
- Adjustable plastic coated wire shelves for improved circulation– Multiple shelf positions spaced at 1/2″ to accommodate virtually any size
- Durable interior– Walls are constructed from white powder coated metal for added strength and improved temperature retention
- Interior light– Energy efficient LED lighting with internal on/off switch
- Self-closing door– Added protection in busy settings; NOTE: door is not self-closing once reversed to an LHD swing
- Right hand door swing– For this unit with the door opening from the other side, order with option “LHD” or as SKU ARS6PV456LHD
- Magnetic door gasket– Quality door gaskets ensure a tight seal for energy savings and improved performance
- Extended warranty– 2 years parts and labor/5 years compressor
- Eco-Friendly– Using environmentally friendly hydrocarbons refrigerants for a greener footprint
- Usage stickers– Ships with removable warning stickers for “DO NOT UNPLUG,” “DO NOT ADJUST TEMPERATURE,” and “DO NOT STORE PERSONAL ITEMS”
- Additional choices– Solid and glass door choices available from 1 to 15 cu.ft.
- Versatile design– Compatible with Pyxis®, Omnicell®, and AcuDose RX®
- ADA compatible height– Sized at 32.5 inches high for use with certain ADA compliant applications
- 100% CFC free– Environmentally friendly design without ozone-damaging chemicals
Summit Undercounter ADA Vaccine Refrigerator Overview:
- Height of Cabinet– 32.5″
- Width– 23.38″
- Depth– 24.38″
- Width with Door Open– 23.88″
- Capacity– 6.0 cu.ft.
- Defrost Type– Automatic
- Door– White
- Cabinet– White
- US Electrical Safety– ETL
- Canadian Electrical Safety– ETL-C
- Sanitation– ETL-S to NSF 456
- Amps– 0.75
- Voltage/Frequency– 115 V AC/60 Hz
- Weight– 115.0 lbs. (54 kg)
- Shipping Weight– 165.0 lbs. (59 kg)
- Parts & Labor Warranty– 2 Years
- Compressor Warranty– 5 Years
Summit Undercounter ADA Vaccine Refrigerator Features:
- Door Swing– RHD
- Reversible– Factory Reversible
- Shelf Type– Wire
- Shelf Qty– 4
- Adjustable Shelves– Yes
- Thermostat Type– Digital
- Fan Type– Interior
- Refrigerant Type– R600a
- Refrigerant Amount– 1.66oz.
- Interior Light– Yes
- Temperature Range– 2 to 8ºC
Summit Undercounter ADA Vaccine Refrigerator Dimensions:
- Interior Height– 24.5″
- Interior Width– 20.0″
- Interior Depth– 17.0″
- Compressor Step Height– 6.5″
- Compressor Step Width– 20.0″
- Compressor Step Depth– 5.0″
Summit Appliance manufactures compact and specialty major appliances: including refrigerators, freezers, laboratory and scientific refrigeration and refrigerated and freezer drawers. Our products are grouped into: laboratory, medical and scientific refrigerators and freezers.
Product FAQ
What is the ARS6PV456 and what is it designed for?
The ARS6PV456 is an ADA-height healthcare-grade refrigerator with approximately 170 L (≈ 6 cu ft) capacity and a width of ~59 cm (≈ 23.4″). It is certified to the vaccine-storage standard and built for clinical, pharmacy or medical use requiring stable +2 °C to +8 °C control.
What temperature range and control features does it support?
It maintains an internal set-point range of about +2 °C to +8 °C, using a digital microprocessor controller with external display and a buffered probe to simulate stored-product temperature rather than just air temperature.
What alarms, monitoring and security features are included?
Includes audible and visual high/low-temperature alarms, door-ajar alert, power-failure indication, sensor-failure alert, remote alarm contact outputs, a factory-installed keyed lock, and a hospital-grade power cord to help maintain clinical standards.
What construction and usability features support its healthcare application?
Features adjustable wire shelving, LED interior lighting, automatic cycle-defrost to minimize temperature spikes, front-breathing design for built-in or freestanding use, self-closing door, antimicrobial handle, and sealed-back cabinet for easier cleaning and hygiene.
Shipping FAQ
What are the exterior dimensions and shipping weight?
Approximate exterior size: 83 cm H × 59 cm W × 62 cm D (≈ 32.5″ × 23.4″ × 24.4″); shipping weight approximately 52 kg (≈ 115 lb).
What electrical and installation requirements apply?
Operates on 115 V AC / 60 Hz, with a current draw around 0.75 amps. Requires a dedicated grounded outlet, level installation, and adequate ventilation at the front or sides depending on installation.
What steps should be taken during unpacking and placement?
Inspect the unit upon arrival for shipping damage; if it was transported on its side, allow it to stand upright for a few hours before powering; ensure the cabinet is level; maintain clearance for door-swing and ventilation; verify controller and alarm functions before loading contents.
What delivery or shipping method is typical for this model?
Due to its clinical grade, this unit typically ships via palletized freight. Confirm receiving access, clear off-loading area, and a stable installation site before delivery.
Application FAQ
Is this unit suitable for vaccine or pharmaceutical cold-chain storage?
Yes — the ARS6PV456 is explicitly engineered for vaccine and clinical storage, supports the +2 °C to +8 °C range, and includes monitoring and security features aligned with healthcare protocols.
What daily best practices should be followed for operation?
Use a calibrated data logger at mid-shelf height; label and rotate stored inventory; avoid over-packing which may restrict airflow; minimize door-open time; and record internal temperature checks at the start of each day.
What routine maintenance is recommended?
Clean condenser and ventilation areas semi-annually; verify alarm, probe and thermostat operation monthly (or per your protocol); inspect door-gasket seal annually; ensure the unit remains level and ventilation paths are unobstructed.
What should be done in the event of a temperature excursion or alarm?
Document the event time, temperature deviation, and which contents were impacted; if necessary relocate items to approved backup storage; identify and correct the root cause (e.g., door left open, airflow blocked, power issue); restore proper conditions and log corrective actions.
